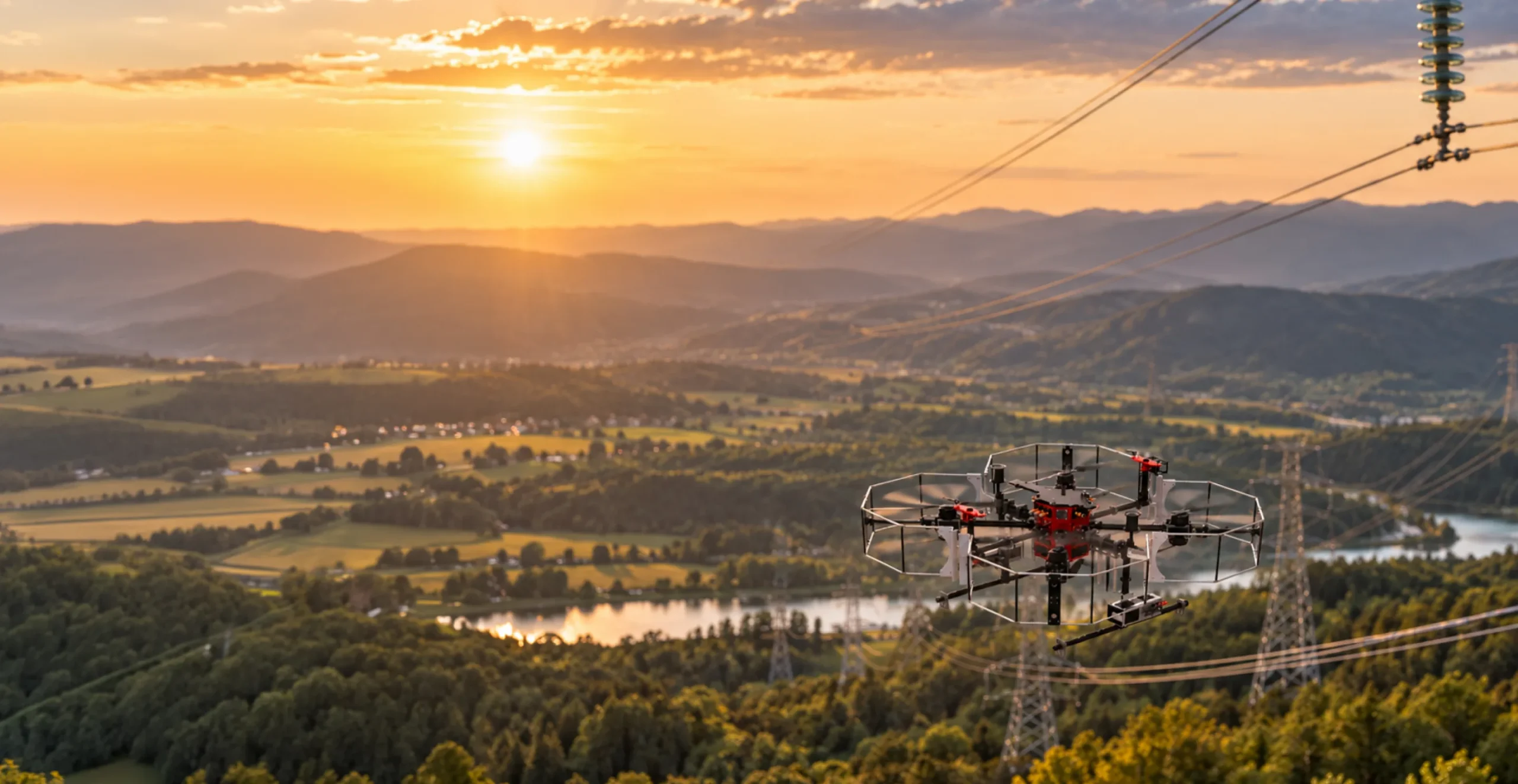

LIGNARD – installing sensors without de-energizing the line.
A robotic solution to position sensors on live HV/EHV conductors, with a ground team and limited logistics.
Use cases
Instrument the grid without shutting it down.
Installation on HV/EHV lines
Direct installation of sensors on live conductors, with no grid outage.
Real-time monitoring
Continuous supervision: current, temperature, vibration, mechanical condition of structures.
Predictive maintenance
Actionable field data to anticipate failures and prioritize interventions.
Custom instrumentation
Installation of sensors tailored to the grid operator’s business needs.
Ground-based operator
No human work at height, no contact with the live line.
Rapid deployment
Faster implementation with a small team and no heavy logistics.
Technical specifications
| Characteristic | Performance |
|---|---|
| Maximum wingspan | 1,5 m |
| Maximum take-off weight (MTOW) | 25 kg |
| Maximum payload | 8 kg |
| Flight endurance* | 10 min |
| Operational range* | 1 km |
| Maximum operating voltage | Up to 400 kV |
| Compatible networks | Medium, high and extra-high voltage |
| Electromagnetic environments | Designed to withstand electromagnetic fields |
| Intervention system | On-board robotic arm |
| Main applications | Installation of sensors and measuring devices on live overhead lines |
